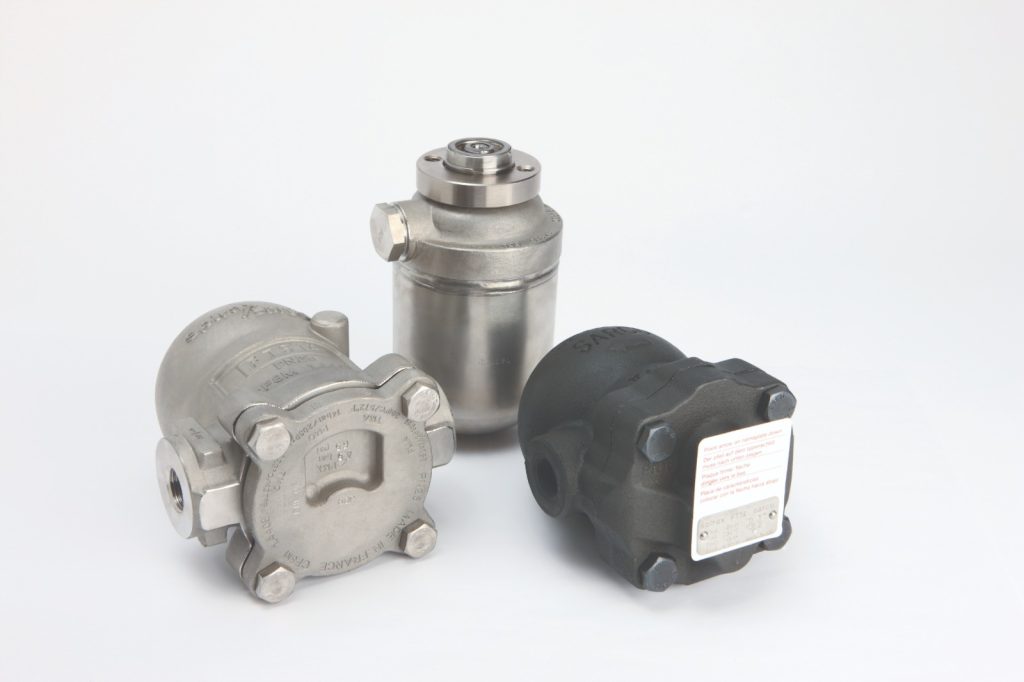

FT14 SpiraxSarco
Specifications:
|
Parameter
|
Details
|
|---|---|
|
Ball Float Steam Trap
|
|
|
Body Material
|
SG Iron (EN-GJS-400-15)
|
|
Internal Components
|
Stainless steel
|
|
End Connections
|
Screwed × Screwed (BSP / NPT), sizes: ½″, ¾″, 1″
|
|
Inlet x Outlet Size
|
1½” x 1” (standard) or as per request
|
|
Pressure Rating (ΔP max)
|
4.5 bar, 10 bar, 14 bar options; safe under full vacuum
|
|
Max Shell Test Pressure
|
24 bar g
|
|
Operating Temp Range
|
Up to ~250 °C (depending on pressure)
|
|
Capsule (BP99/32)
|
Rated to 150 °C superheat @0 bar, 50 °C superheat @32 bar
|
|
Orientation
|
Horizontal or vertical (flow R→L, L→R options)
|
Key Features:
- Self-acting ball float mechanism –discharges condensate continuously.
- Stainless steel internals –corrosion-resistant, ensures long service life.
- Built-in air vent & optional steam-lock release (SLR valve) –prevents air lock.
- Modular design –easy removal and maintenance without pipeline disturbance.
- Vacuum-capable –enables service in condensers and low-pressure zones.
- Multiple pressure ratings –adaptable to various system conditions (4.5, 10, 14 bar).
Benefits:
- Fully automatic operation – no external power or controls needed.
- Efficient condensate removal – maintains optimal heat transfer.
- Air management – integrated vent avoids startup issues and steam wastage.
- Minimal maintenance downtime – internals accessible without breaking connections.
- Versatile deployment – suitable for systems with vacuum or high back-pressure.
- Robust and safe construction – SG iron body, stainless internals, pressure-certified.
